Industrial RO Plant Specifications
Access complete mechanical, electrical, and plumbing datasheets for our modular skid-mounted systems. Engineered for continuous high-pressure operation.
99.8%
TDS reduction
150%
pressure tested
System Capacity Ratings
Review the standard mechanical and electrical parameters for our high-capacity reverse osmosis skids. All units are fully pressure-tested at our facility before shipment.
Vanguard 5K
Vanguard 20K
Vanguard 50K
Designed for mid-sized industrial facilities requiring reliable continuous output.
Engineered for high-demand manufacturing and municipal water applications.
Heavy-duty infrastructure for large-scale utility and industrial operations.
5,000 LPH
Nominal Flow Rate
20,000 LPH
Nominal Flow Rate
50,000 LPH
Nominal Flow Rate
15 HP
Pump Motor Power
40 HP
Pump Motor Power
100 HP
Pump Motor Power
Engineering Datasheets
Get instant access to comprehensive CAD blocks, electrical schematics, and smart-monitoring telemetry integration guides for Modbus and BACnet protocols.
Technical FAQ
What feedwater parameters are required?
What is the typical membrane recovery rate?
Our standard skids are engineered for feedwater up to 5,000 ppm TDS. Higher concentrations require custom pre-treatment skids.
Depending on feedwater temperature and chemical profile, our systems achieve a recovery rate of 75% to 80% with high-rejection membranes.
Which telemetry protocols are supported?
Are structural skid dimensions customizable?

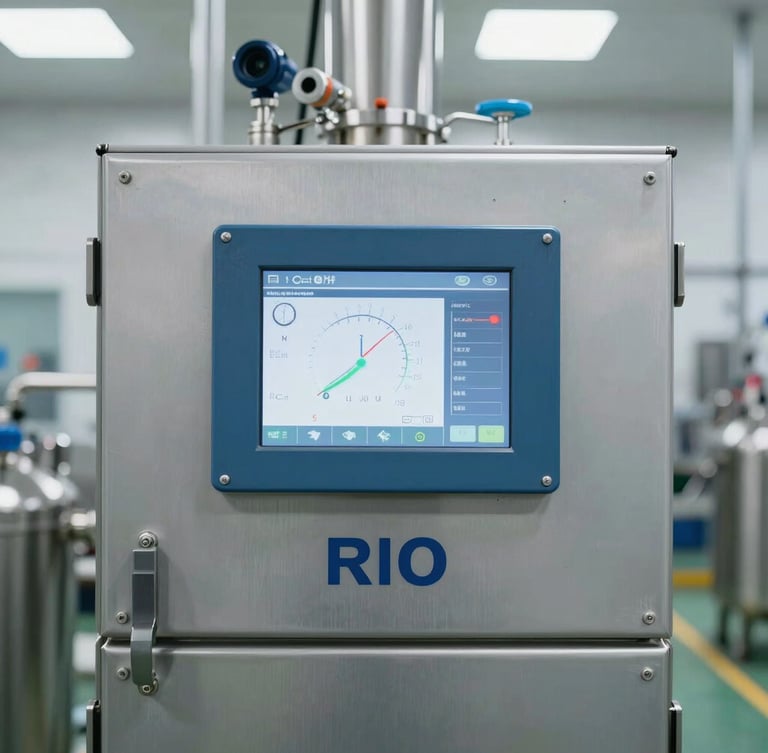

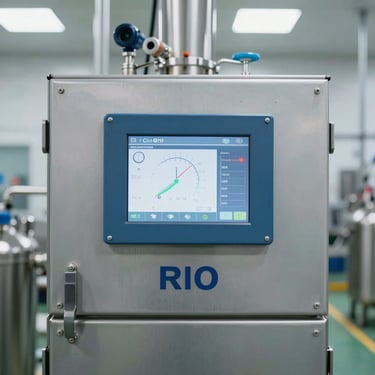

Every plant includes integrated PLC controllers supporting Modbus TCP/IP, BACnet, and secure cellular smart-monitoring telemetry out of the box.
Yes, while our pre-engineered skids speed up deployment, we offer custom structural layouts to fit tight mechanical room footprints.
